MIM Service

Our MIM Services

As a professional MIM (Metal Injection Molding) manufacturer rooted in powder metallurgy technology, we deliver full-stack custom MIM manufacturing services for miniature, complex, high-precision metal components. Covering design DFM optimization, mold fabrication, rapid prototyping, mass production, surface finishing and full quality testing, our one-stop solution eliminates cross-supplier communication costs and shortens your product launch cycle significantly.

We cater to both small-batch prototype verification and large-scale volume production, serving global clients across consumer electronics, medical devices, automotive, industrial hardware and aerospace industries. Every customized part is manufactured in strict accordance with international industrial standards to ensure stable performance and consistent batch quality.

Learn More

Our MIM Services

Equipped with advanced MIM production and testing equipment, we maintain mature manufacturing capabilities to handle ultra-precision, complex-structured metal parts that traditional machining and casting cannot achieve. Our core capability advantages focus on precision control, structural adaptability and large-volume production stability.

Core Capability Parameters

Capability Item	Technical Specifications
Dimensional Tolerance	±0.01mm~±0.03mm (high precision); ±0.05mm (mass production standard)
Minimum Wall Thickness	0.2mm (ultra-thin structure), optimal forming thickness 0.4mm-6mm
Single Part Weight	0.1g - 100g (mainstream customized range)
Surface Roughness	Ra 0.2μm-1.6μm (as-sintered); Ra 0.05μm (precision polished)
Material Density	90%-95% of forged metal density, stable mechanical properties
Production Capacity	3-7 days for prototype samples; 100-1,000,000 pcs monthly mass production

MIM vs Traditional Processing Advantages

Processing Method	Structural Adaptability	Material Utilization	Mass Production Cost	Surface & Precision Performance
MIM Technology	Excellent, supports thin walls, tiny holes, deep grooves and integrated irregular structures	≥98%, nearly zero material waste	Low cost for high-volume orders, no repetitive processing cost	High precision, smooth as-sintered surface, minimal secondary processing
CNC Machining	Poor, difficult and costly for complex micro structures	50%-70%, serious raw material waste	High labor and time cost, not suitable for mass production	Smooth surface but high processing cost for tiny precision parts
Die Casting	Average, unable to form ultra-fine micro features	80%-85%	Medium cost, limited by precision defects	More burrs and pores, low overall precision
Stamping	Poor, only applicable for simple flat and bending parts	70%-80%	Low cost but extremely low structural adaptability	Ordinary surface, unstable precision for micro parts

Available MIM Materials

We adopt high-purity imported metal powder and professional polymer binders to ensure stable feedstock fluidity, uniform sintering shrinkage and consistent mechanical properties of finished parts. All materials comply with RoHS environmental standards and industrial certification requirements, supporting customized material matching for different application scenarios.

Material Grade	Key Features	Main Applications
316L Stainless Steel	Excellent corrosion resistance, oxidation resistance and biocompatibility	Medical devices, wearable equipment, precision electronic parts
17-4PH Stainless Steel	High hardness, high tensile strength, good wear resistance	Automotive precision parts, industrial tool components, structural fasteners
304 Stainless Steel	Balanced performance, cost-effective, good ductility	Consumer electronics, daily hardware, general industrial parts
Iron-Nickel Alloy	Stable magnetic conductivity, low temperature resistance	Electronic magnetic components, sensor parts
Copper Alloy	High thermal conductivity and electrical conductivity	Conductive structural parts, heat dissipation components
Titanium Alloy	Light weight, high strength, high biocompatibility	Aerospace, high-end medical precision parts
Magnetic Alloy	Stable magnetic properties, high precision forming	Smart equipment, automotive electronic components

Quality Assurance & Quality Control

Quality stability is the core guarantee of MIM mass production. We implement full-process quality management in accordance with ISO9001 quality system standards, conducting strict inspection from raw material incoming test, in-process production monitoring to finished product delivery inspection. All quality data is recorded and traceable to avoid batch defects and dimensional deviations.

Full-Link Quality Control System

● Raw Material Inspection: Test powder purity, binder ratio and feedstock uniformity before production, eliminate unqualified raw materials fundamentally.

● In-Process Monitoring: Real-time monitoring of injection molding parameters, debinding temperature and sintering atmosphere, adjust process parameters dynamically to ensure consistent part shrinkage and density.

● Finished Product Testing: Equipped with CMM, optical projector, hardness tester, roughness meter and other professional testing equipment, inspect dimension tolerance, surface quality, hardness and mechanical properties one by one.

● Batch Sampling & Aging Test: Regular batch sampling and durability aging tests to verify the stability of mass-produced parts under long-term use scenarios.

● Standardized Quality Report: Provide complete inspection reports, material certificates and compliance documents for each batch of orders to support customer quality audit.

Certification & Compliance

MIM Standard Production Process

We adopt standardized and mature MIM production workflow, every process link is standardized and supervised to ensure high precision, high consistency and high yield of finished parts. The whole process realizes one-stop forming without redundant procedures, effectively controlling production cycle and product cost.

1. DFM Evaluation & Design Optimization: Professional engineers analyze customer 2D/3D drawings, optimize product structure for MIM manufacturability, avoid structural defects that affect forming and sintering, and provide detailed DFM analysis report.

2. Raw Material Mixing & Feedstock Preparation: Mix high-purity metal powder and polymer binder in precise proportion, produce uniform and stable feedstock to ensure good fluidity for precision injection and stable sintering shrinkage.

3. Precision Mold Manufacturing: Customize professional MIM molds according to optimized drawings, pre-compensate sintering shrinkage tolerance, mold precision up to ±0.002mm to restore complex product features perfectly.

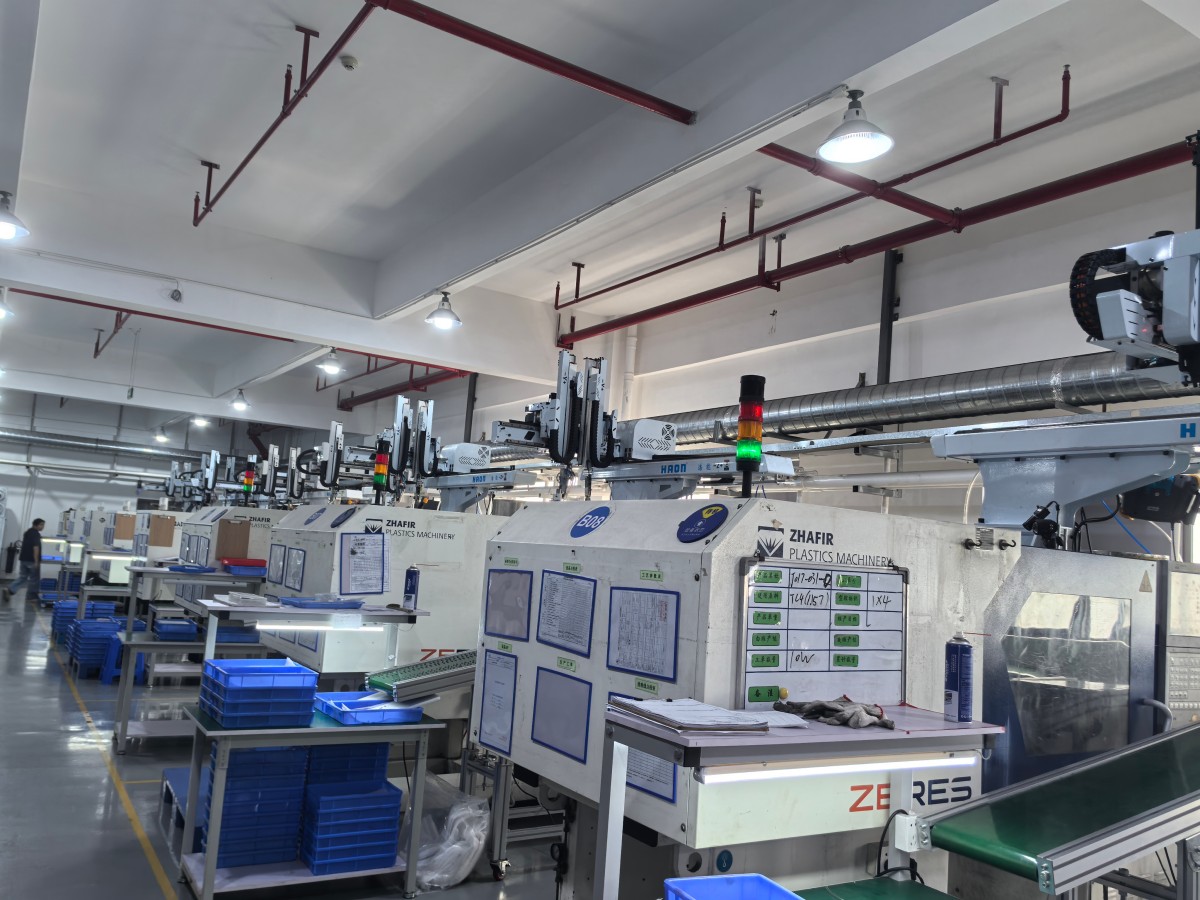

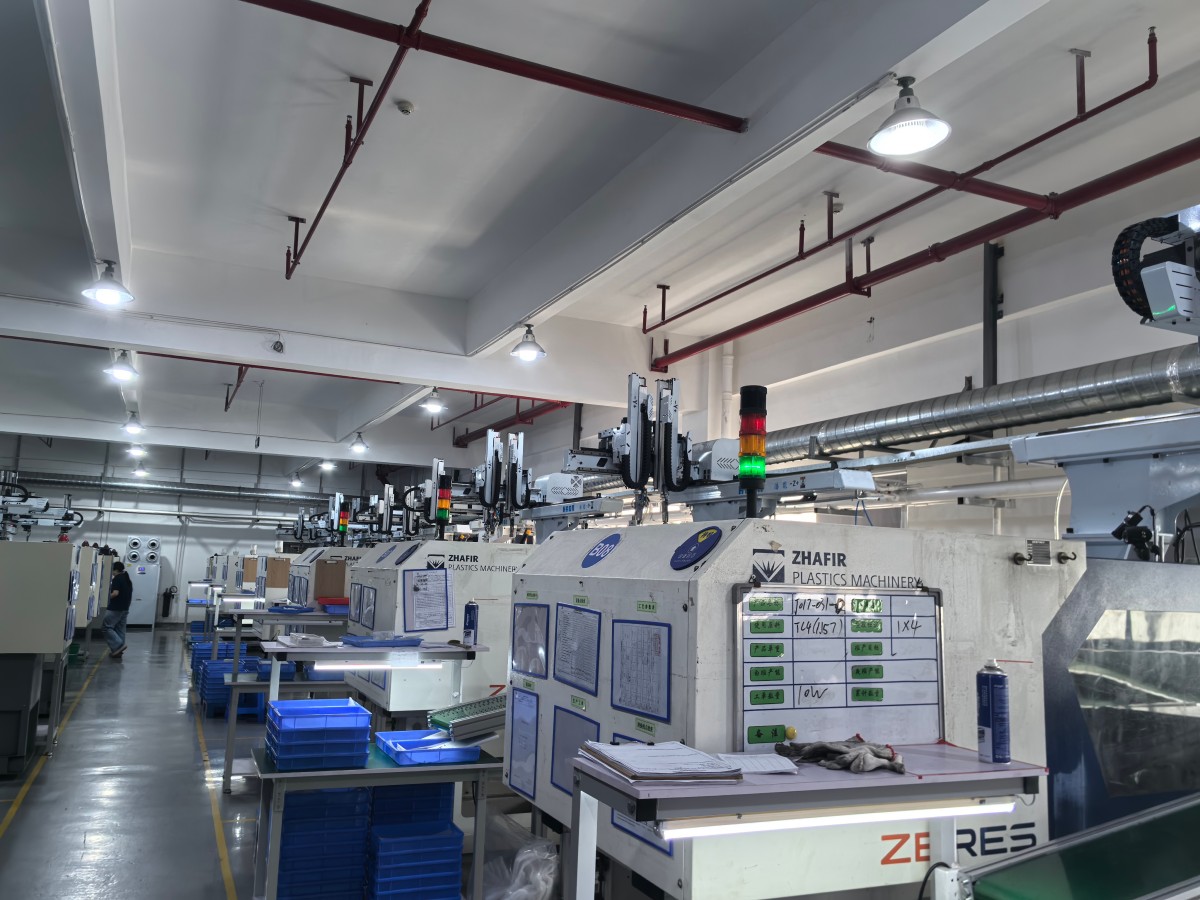

4. High-Precision Injection Molding: Complete one-time forming of green parts, realizing integrated molding of thin walls, tiny holes, grooves and irregular complex structures.

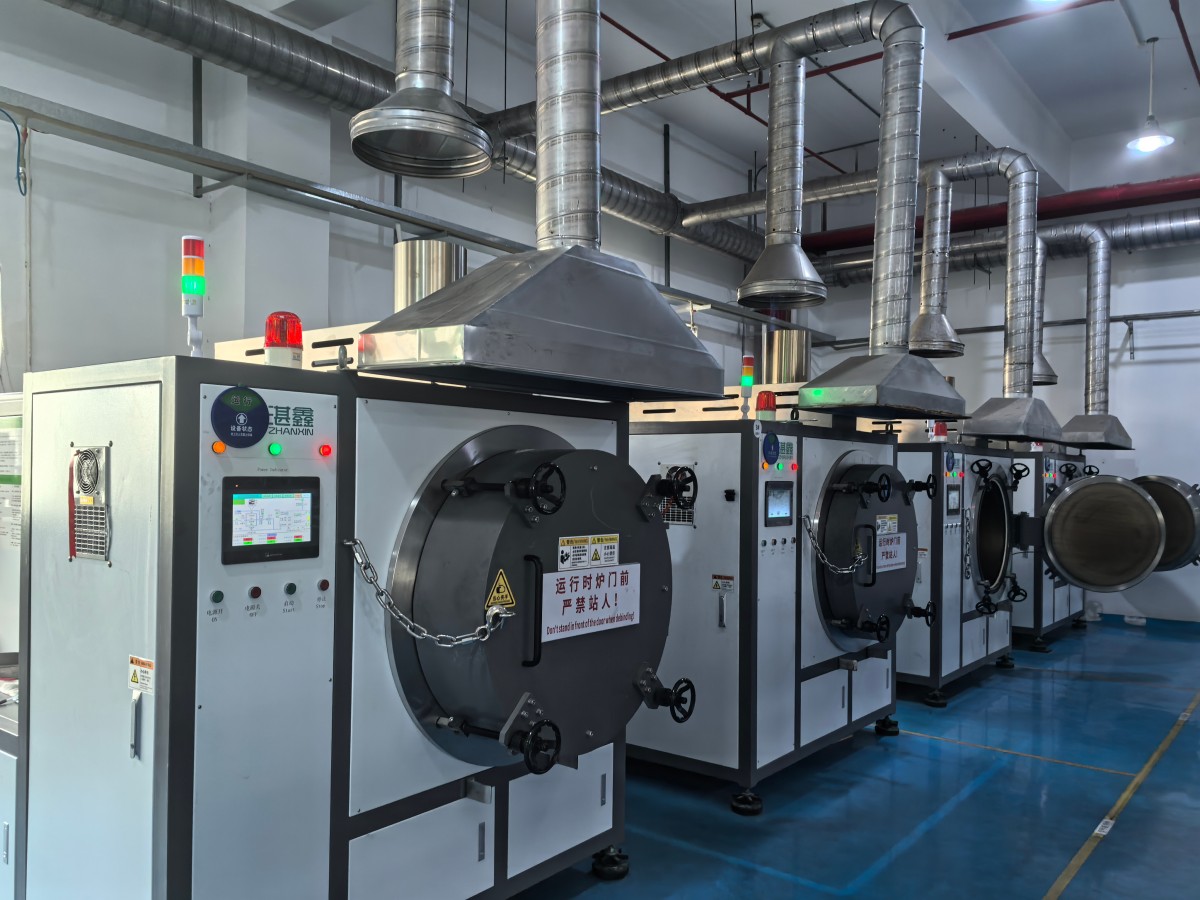

5. Dual Debinding Treatment: Adopt catalytic and thermal dual debinding process to completely remove internal binder, avoid carbon residue, and improve part compactness and surface finish.

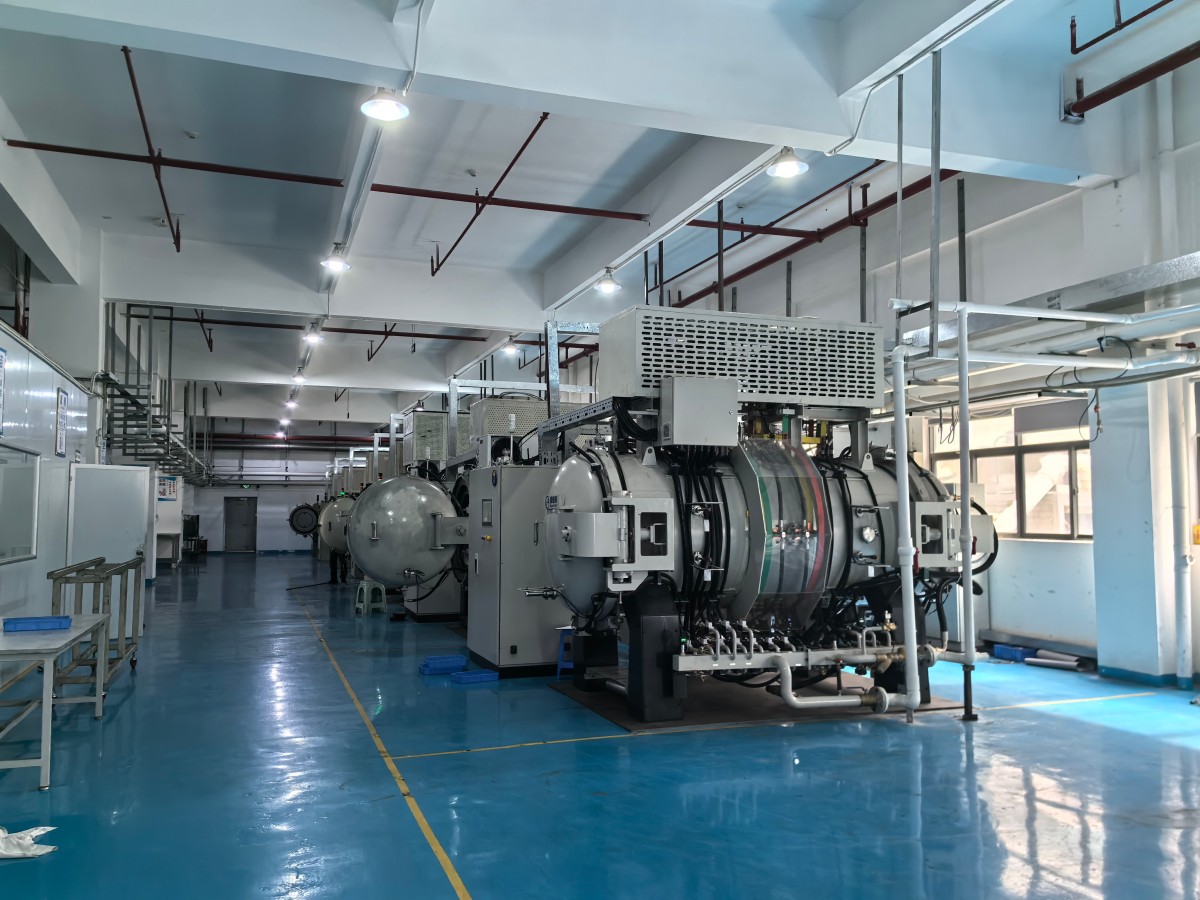

6. High-Temperature Vacuum Sintering: Sintered at constant high temperature in vacuum environment to realize part densification, the finished product density is close to forged metal with excellent mechanical properties.

7. Secondary Finishing & Surface Treatment: Provide CNC fine machining, deburring, sandblasting, polishing, electroplating, passivation and other customized treatments to meet assembly and appearance requirements.

8. Final Inspection & Packaging Delivery: Conduct full dimensional and performance inspection, pack with anti-rust and dust-proof materials, and arrange global delivery according to customer requirements.

Professional Customer Support

We provide full-cycle customer support from pre-sales consultation to after-sales service, focusing on solving customers' customized production problems and creating stable and long-term cooperative relationships. Our professional sales and engineering team supports 1-on-1 customized solution docking for global customers.

Pre-Sales Support

● Free DFM design evaluation and manufacturability analysis
● Customized material selection and process solution recommendation
● Accurate quotation based on drawing, material and order quantity
● Fast prototype scheme arrangement and cycle confirmation

In-Production Service

● Real-time production progress update and process feedback
● Timely communication and adjustment of process problems
● Batch quality monitoring and early risk warning

After-Sales Guarantee

● Complete product quality documents and technical support
● Professional after-sales response for product quality problems
● Long-term batch order follow-up and process optimization service
● Flexible customization support for product iteration and upgrade

Whether you need small-batch prototype verification or large-scale mass production of MIM precision parts, we can provide efficient, professional and cost-effective customized manufacturing solutions.
